Description:

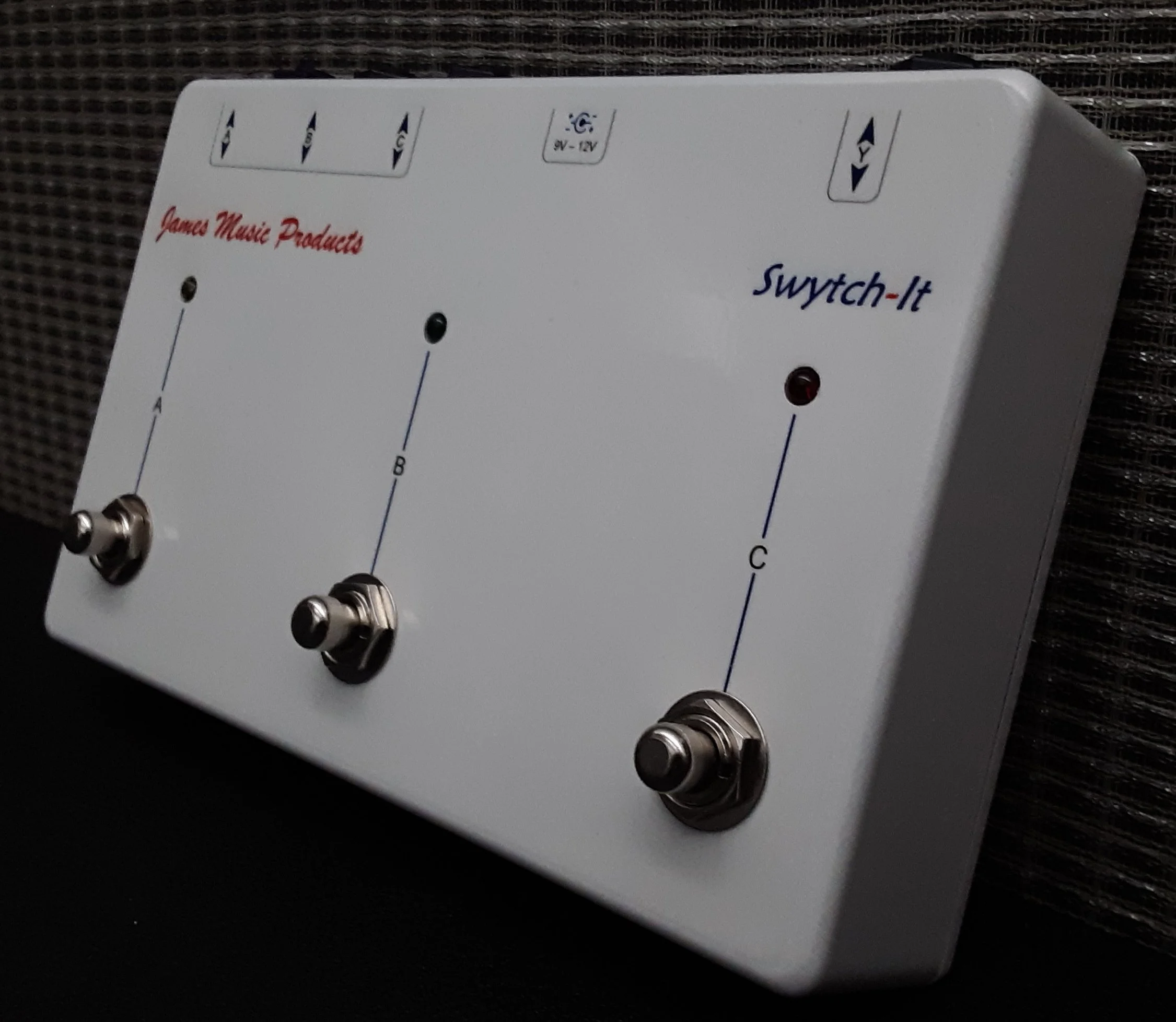

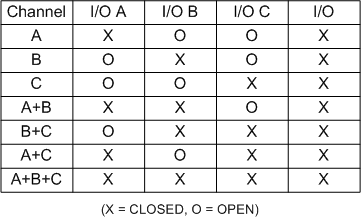

Swytch-It is a three channel, multi-combinational signal router. Its internal relay tree affords seven different routings.

LEDs indicate which channels are in use. Un-selected channels are muted.

Pressing any single foot switch connects the signal to the Y and selected channel I/O. It is not necessary to disconnect a previous connection before making another as with other switching pedals; this is done automatically. Pressing multiple foot switches will connect the signal to the Y and selected channels, splitting the signal.

Suggested Uses:

Switch-It is ideally suited for directing an instrument signal through various chains of effects. or to multiple amplifiers.

Notes:

• I/O C is connected after powering on

• selecting unused (open) I/O channels may introduce noise into the output

• the signal path has no buffering. The signal is resistively shared between the multiple routes. Signal and tonal alteration could occur with some routing combinations.

Specifications:

Power Supply: 9 V to 12 V DC

Current Draw: 100 mA @ 9 V (all relays & LEDs on)

DC Connector Size: 2.1 mm (standard BOSS)

DC Connector Polarity: Universal Input DC (either polarity)

I/O to A, B, C Resistance: 20 kOhm

I/O Connectors: 1/4” jack

Dimensions: 7.6 L x 4.75 W x 1.9 H inches

Weight: 24.3 oz
